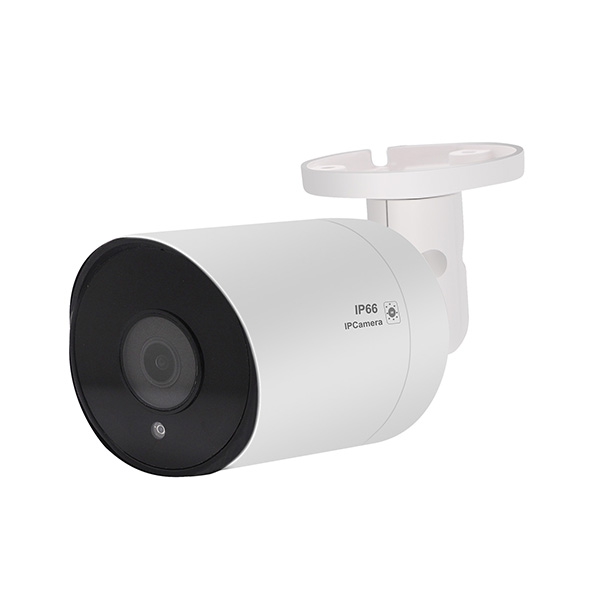

Model

W608AHZ49EA

Camera

Image Sensor

1/2.9" 8MP Sony IMX415 CMOS

Effective Pixels

3864 (H) × 2202 (V) approx. 8.51M pixels

Electronic Shutter

AUTO, AUTO, 1/25s ~ 1/100000s

Min. Illumination

0.05Lux@F1.2(AGC ON), 0Lux IR on

Day/Night

Auto/Color/(B/W)/Timing

WDR

Digital WDR

White Balance

Auto/Manual

AGC/BLC

Support

DNR

2D/3D DNR

Other

Motion Detection, Privacy Mask, Flip, Mirror

Encode

Embedded Solution

MC338Q

Video Standard

H.264/H.265

Video Resolution

MainStream:20fps@8MP(3840x2160),

30fps@6MP(3072x2048),5MP(2592x1520),3MP/1080P/720P

Video Bitrates

Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps

Audio Standard

512Kbps - 12Mbps, VBR/CBR

IR Led

IR Led

2PCS IR Array Leds

IR Distance

20-30M

Lens

Focal length

3.6mm fixed lens

Optional Function

Audio, POE etc.

Network Services

Protocol

RTSP/DHCP/NTP/DST/FTP/SMTP

P2P

Yes

Web

IE , Firefox, etc.

Media

CMS, Android, IOS

ONVIF

17.06 compatible

General

Network Port

1-RJ45, 100Mbps, POE optional

Power Supply

12 VDC ± 10%

Power Consumption

< 5 W

Operating Temp.

-30℃-(+60)℃, 10%-90%RH
