Model

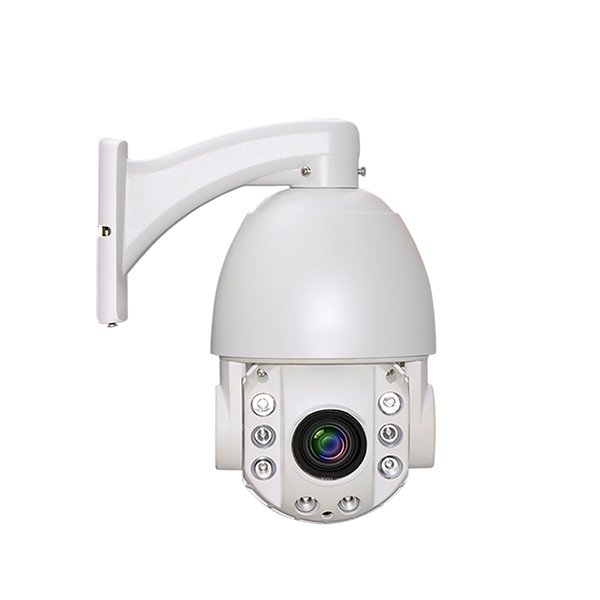

YC-M555IR-20X-BTJ

Camera

Image Sensor

1/2.8" Sony IMX335 CMOS

Effective Pixels

5 megapixels

Electronic Shutter

AUTO, 1/25s ~ 1/100000s

Min. Illumination

0.01Lux@F1.2(AGC ON), 0Lux IR on

Day/Night

Auto/Color/(B/W)/Timing

WDR

Digital WDR

White Balance

Auto/Manual

AGC/BLC/HLC

Support

DNR

2D/3D DNR

Other

Multi-lines OSD, Motion Detection, Privacy Mask, Mirror

Encode

Video Standard

H.265/H.264

Video Resolution

Main Stream:

15fps@5MP(2592x1944),25fps@4MP/3MP,30fps@1080P/720P

Sub Stream: D1/VGA(640x480)/360P/QVGA@25fps

Video Bitrates

32Kbps - 8Mbps, VBR/CBR

Audio Standard

G.711-u/G.711-a

OSD Overlay

Title and Time overlay

IR Led

IR Led

8pcs array IR Led (4 near + 4 far)

IR Distance

100 M

Lens

Focal length

4.7-94mm

IRIS

F1.6-3.5

View angle

64 - 2.9 °

Zoom

20x optical zoom

Other Function

Standard

IEEE 802.3af/at , high power

Audio

Internal Microphone

PTZ

Pan/Tilt Range

Pan: 0° ~ 355°; Tilt: 0° ~ 90°

Preset Point

128

Control Speed

Pan: 0.5° ~40° /s; Tilt: 0.5° ~40° /s

A-B  Scanning

Support

Auto Cruising

Support 8 groups

Power on Action

Preset/Scan/Cruise

Power-off Recovery

Support

Network Services

Protocol

HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc.

P2P

Yes

Web

IE , Firefox (32bit esr), etc.

Media

CMS, Android, IOS

ONVIF

17.06 compatible

General

Network Port

1-RJ45, 100Mbps, PoE 48V in

Power Supply

12 VDC ± 10% 2A

Power Consumption

< 20 W

Operating Temp.

-30℃-(+60)℃, 10%-90%RH

Size

Φ137(mm)×234(mm)

Weight

2.2kg
