Wireless Kit & Camera

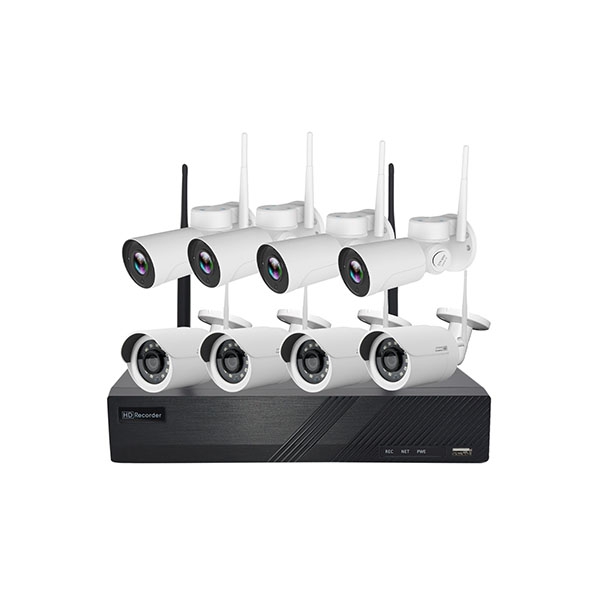

WF-9304B4PNE

1pcs 8CH 1080P LCD NVR
8 pcs 1080P HD IP wireless camera:4pcs Bullet + 4pcs PTZ
1pcs network cable
1pcs12V/2A power supply (for NVR)
8pcs 12V/1A power supply (for camera)
User Manual, Screws bag, Mouse
    8CH Wireless WiFi NVR KIT
    Camera Key Features:
    1. 1080P HD video output
    2. 2Db WIFI antenna and 100mbps water-proof RJ-45 port
    3. Auto match the NVR channel and play video
    4. Built-in IR leds, Day and Night monitoring
    5. bullet and dome housing optional
    NVR Key Features:
    1. 1080P HDMI/VGA video output
    2. Built-in dual 5Db high power WIFI antennas
    3. Real Plug and Play, automatic connecting video
    4. Easy QR code to download app and remote login
    5. Support iPhone and Android app
    Wireless NVR
    Model NO. YC-NVR9308WF
    Operating System Embedded Linux OS
    Video Input Network Video 8CH 1080P
    Network video input broadbank  40Mbps
    Video Output HDMI output 1chresolution1024x768,1366x768,1440x900,1920x1080p
    VGA output 1chresolution1024x768,1366x768,1440x900,1920x1080p
    Recording Record mode Manual/Schedule/Motion/Alarm
    Playback by time/Event
    Backup USB backup, network download
    Hard Disk Type 1*SATA
    Max. Capacity 6 TB
    Network Network port 1 - RJ45 10M/100M
    Wireless  2 - 5Db WIFI antennas
    Network Control UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up)
    DHCP (Automatically obtain an IP address), etc…
    Others Power Supply DC12V/2A
    USB  2 - USB 2.0 for mouse and USB drive
    Power Consumption (W)  ≤5WWithout HDD
    Operate Temperature (°C)  -10~+55
    Working Humidity (%) RH 10%~90%
    Dimension 257mmW×210mmV×45mmH
    Weightwithout HDD ≤1Kg
    Wireless camera- Bullet
    Housing Model  WF932AHZ37FA
    Sensor 1/2.7” Progressive Scan Sensor
    Signal System PAL/NTSC
    Compression standard H.265, H.264H265+
    Minimum illumination Color: 0.01 Lux;  0 Lux with IR on
    Shutter AUTO 1/25s - 1/25,000s
    Lens 3.6MM
    IR LEDs 12pcs
    IR Distance 15-20m
    OSD Date Time & Title
    White Balance Auto
    Day&Night Auto / Color / BW
    3D-DNR Auto
    Mirror/Flip On / Off
    Audio optional
    Video Stream Main stream: 1920x1080@15fps
    Sub stream: 640x480/640x360/CIF@15fps
    Network  RJ45 / WIFI 802.11b/g/n
    Working Temperature/Humidity  -10 to +50 / 30% to 80% RH
    Storage Temperature/Humidity  -20 to +60 / 20% to 90% RH
    Power Input DC12V-1A
    Power consumption  ≤6W
    Dimension 205(L)×70(W)×55 (H)mm
    Weight ≤1Kg
    Wireless camera-PTZ
    Housing Model  WF932-30PTZ
    Sensor 1/2.7” Progressive Scan Sensor
    Signal System PAL/NTSC
    Compression standard H.265, H.264H265+
    Minimum illumination Color: 0.01 Lux;  0 Lux with IR on
    Shutter AUTO 1/25s - 1/25,000s
    Lens 2.8-12mm Motorized Zoom lens.
    IR LEDs 6pcs
    IR Distance 20-25m
    OSD Date Time & Title
    White Balance Auto
    Day&Night Auto / Color / BW
    3D-DNR Auto
    Mirror/Flip On / Off
    Audio optional
    Video Stream Main stream: 1920x1080@15fps
    Sub stream: 640x480/640x360/CIF@15fps
    PTZ
    Pan/Tilt Range Pan: 0° ~ 180°; Tilt: 0° ~ 55°
    Preset Point 1
    Manual Control Speed Pan: 0.5° ~20° /s; Tilt: 0.5° ~10° /s
    Guard Position Support
    Power-off Recovery Support
    Network  RJ45 / WIFI 802.11b/g/n
    Working Temperature/Humidity  -10 to +50 / 30% to 80% RH
    Storage Temperature/Humidity  -20 to +60 / 20% to 90% RH
    Power Input DC12V-1A
    Power consumption  ≤6W
    Dimension 205(L)×70(W)×55 (H)mm
    Weight ≤1Kg
